XERION 5000-4000.

4x4 high-horsepower tractors from CLAAS.

A 4x4 high-horsepower tractor that is not simply powerful, and it's also not intended simply for pulling one thing in particular – in fact, it's the machine for almost any application, flexible and manoeuvrable, and rising to the most formidable of challenges. The XERION 5000 / 4500 / 4000 successfully combines power and intelligence.

XERION 5000-4000.

4x4 high-horsepower tractors from CLAAS.

A 4x4 high-horsepower tractor that is not simply powerful, and it's also not intended simply for pulling one thing in particular – in fact, it's the machine for almost any application, flexible and manoeuvrable, and rising to the most formidable of challenges. The XERION 5000 / 4500 / 4000 successfully combines power and intelligence.

  1. Products
  2. Tractors
  3. XERION 5000-4000
  4. Engine + drive train
  5. ...
  6. Transmission + PTO

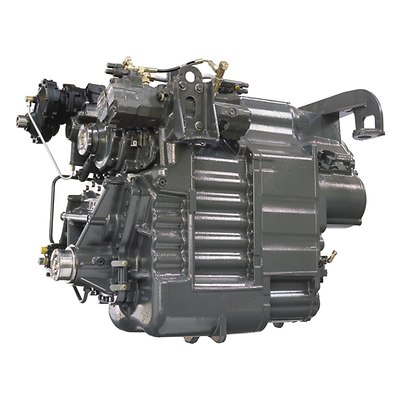

Absolutely robust. The transmission.

XERION 5000-4000

Continuously variable over 500 hp with CMATIC.

The fully reversible ZF Eccom 4.5 converts the installed engine power with absolute efficiency in both directions of travel.

The auxiliary drive for the power hydraulics is only available with the Eccom 4.5.

The Eccom 5.0 is simpler in structure and delivers full power transmission in forward gears. It is available in the TRAC version.

  • Infinitely variable transmission from 0.05 to 50 km/h (optional 40 km/h) in both directions of travel
  • Permanent all-wheel drive
  • Max. speed of up to 50 km/h with reduced engine speed – unique in this performance class
  • Optimum engine speeds for minimum fuel consumption

Drawing on unparalleled resources.

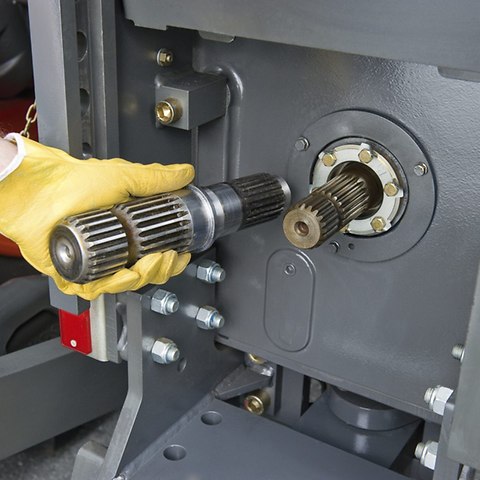

The XERION develops its high output when using the PTO at 1,000 rpm at a reduced engine speed of just 1,730 rpm, enabling you to benefit from reduced fuel consumption at full engine output.

Available PTO stubs:

  • 1¾", 20 splines
  • 1¾", 6 splines
  • 1⅜", 6 splines
  • 1⅜", 21 splines
  • 2¼", 22 splines (Ø 57.5 mm)
